Enterprise

The Rockfish Workbench can be deployed in your own datacenter, you need a way to pull and run OCI or Docker containers.

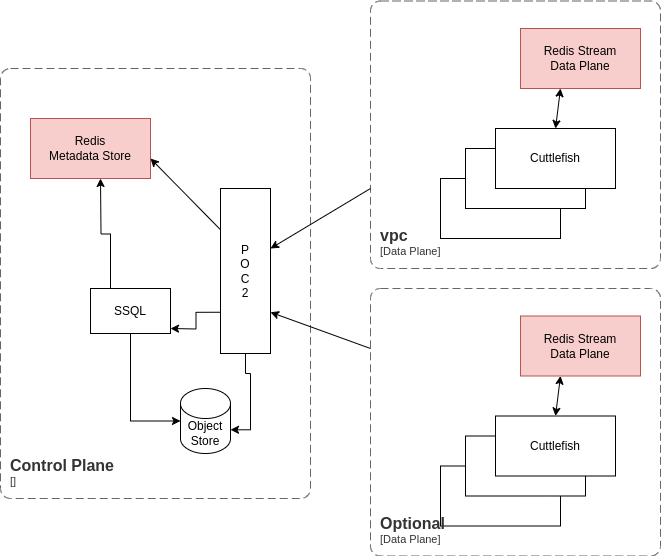

It can be Kubernetes, systemd, your own solution it does not matter. Let's have a look at the architecture and the various components

App Name Area Short Description Required
app-ui control plane As the name suggested a web app that can be used to interact with the system No
poc2 control plane Our HTTP API Yes
poc2-admin control plane An internal HTTP API that can be used for access management Yes
object store control plane Rockfish Workbench can manage snapshot of your data if you want No
SSSQL control plane SQL query engine to inspect datasets No
Redis control plane The control plane uses Redis as database Yes
cuttlefish data plane A worker written in Python capable of training, generate Yes
Redis data plane Our worker relay on Redis stream to exchange data in between jobs No

Redis

The workbench replays on Redis and its flexibility both as data pipeline (via Redis Stream) and as metadata store.

Based on capabilities and scales you can deploy two independent Redis (even in Cluster mode) to scale and operate them independently since they serve two distinct needs or you can relay on a single installation, this is why we marked the second one as not requited.

Object Store and SSQL

The Rockfish Workbench solution has a feature called dataset. Dataset are tables containing the generated value or snapshot of your data you want to train a model with.

This feature is not mandatory to use because via Data Source the workbench can do and read data where you have them. Right now we support GCP Storage, AWS S3 and Databricks.

If you need us to storage your data you have to provide an object store to use, it can be:

  • AWS S3
  • GCP Storage
  • Azure Object Store
  • MinIO

To read a dataset you can download all of that via HTTP API or you can filter and query a subset of a dataset via SQL query, to do that we serve a container called sssql.

Deploy

Check our deploy page to know how we can help you releasing Rockfish Workbench.
